Main menu

CnW Recovery Main Screen

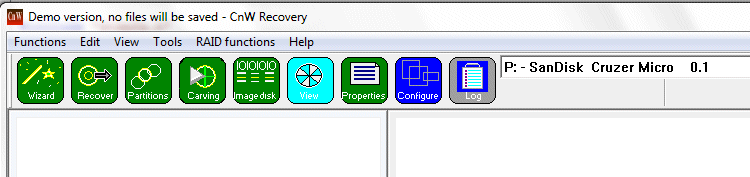

The main menu for CnW Recovery is displayed once the Wizard has been exited. There are several simple menu functions as displayed below. This screen is the start of all manual operations, generally for disks that can not be recovered by the Wizard

main_menu1

Wizard

    This Icon will take the user back to the recovery Wizard

Recover

     In this mode, the media is read and a new option screen is displayed depending on the type of media.  There is a separate screen for CDs / DVDS  FAT, NTFS, MAC, Unix media and MTF files.  Most recovery procedures start here.

Partitions

    The partitions function is most commonly used when the boot sector of the disk has failed, or been corrupted

Carving

    Data carving is a process to examine the disk on a sector by sector basis, and extract files based on signature, and file type.  This is independent of any file system, or operating system

Image disk

    This is a mode where the media is read, sector by sector and either produces a complete disk image file is a DD format.  The imgae can be built up incrementally, and will skip bad sectors.

View Sector

    The View icon lets the user view sectors on the media as a Hex dump.

Properties

    When clicked it will give a very brief description of the media, including type of media if it is a CD, and the number of files

Configure

    The configure function is used to set up user preferences, and registration code.

Log

    The Log is a record of all restores and imaging operations, including error messages.

Drive selection

    The combo box of all drives that have been detected, and do contain media. Thus, an empty DVD drive will not be displayed until it has a DVD, and the refresh function has been applied.

Tools - drop down menu

    The tools are a selection of useful tools related to data recovery.  They include merging MPEGS into video files and also splitting directories suitable for burning to DVDs.

In addition to the icons, there are several drop down functions as listed below

Functions

  • Wizard
  • Restore
  • View Sectors
  • Properties
  • Raid functions
  • Refresh drive list - when a drive is added, or media changed
  • Drive diagnostics
    • Some useful tests on drives
